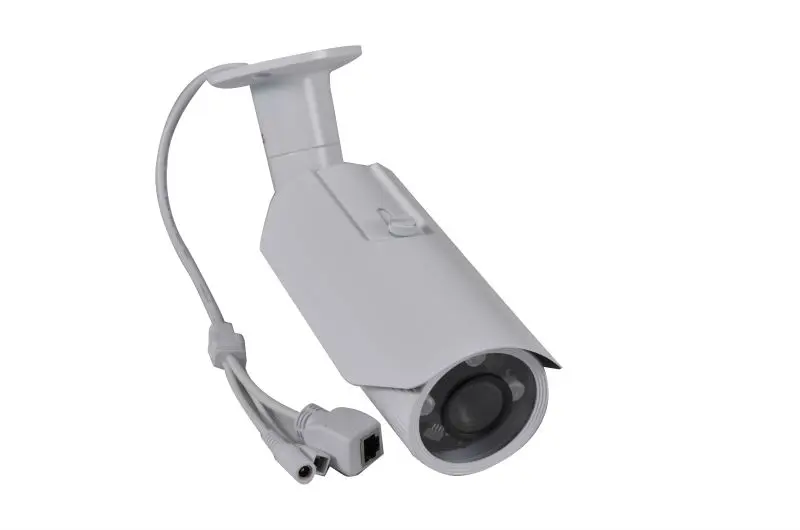

960P waterproof WDR IR outdoor bullet CCTV security camera

FOB Reference Price:Get Latest Price
US $49.9-52 / Piece | 5 Piece/Pieces (Min. Order)
Supply Ability:
3000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Wellcam
Model Number:
B2.920WF-E-POE
Type:
IP Camera
Style:
Bullet Camera
Sensor:
CMOS
Technology:
NetWork
Special Features:
Waterproof / Weatherproof
Solution:
Hisilicon Hi3518C+Sony IMX225 Sensor
Image Sensor:
1/3" 1.3Megapixels Progressive Scan Exmor CMOS
Day\night:
WDR,Day/Night(ICR),AWB,AGC,BLC
Colour:
White or Black customized
IR LEDs Length:
30-40m
Multiple network monitoring:
Web viewer,CMS,Smart phone
A/V:
support
Lens:
support
Water Proof standard:
IP66
Power Supply:
12V±10%
Packaging & Delivery
Packaging Details
OEM Package,Neutral Package,Standard carton Package
Delivery Time
About 3-7 working days after received payment



                960P waterproof WDR IR outdoor bullet CCTV security camera



Product Description







Features:

. 1/3" 1.3Megapixels Progressive Scan Exmor CMOS

. H.264 & MJPEG dual-stream encoding

. Max 25/30fps@720P (1280x720)

. WDR, Day/Night (ICR), AWB, AGC, BLC

. Multiple network monitoring: Web viewer, CMS, Smart phone.

.2.8-12mm varifocal lens or fixed lens 4mm, 6mm, 8mm, 12mm and 16mm are optional

. Max. IR LEDs Length 20-30M

. IP66, POE

. Support defogging





Specification:

Model

IR

IP66

POE

LENS (6mm, 8mm, 12mm and 2.8-12mm)

B2.920WF-E

Yes

Yes

No

Fixed Lens included, 2.8-12mm optional

B2.920WF-E-POE

Yes

Yes

Yes

Fixed Lens included, 2.8-12mm optional

Camera

Image Sensor

1/3” 1.3megapixels Progressive Exmor CMOS

Effective Pixels

1280x1024

Scanning System

Progressive

Electronics Shutter Speed

Auto (1/25,1/30 ~ 1/10000s)

Min. Illumination

0.1Lux/F1.2 (Color), 0.01Lux/F1.2(B/W); 0Lux/F1.2 (IR on)

S/N Ratio

>50dB

Camera Features

Max. IR LEDs Length

20-30M

Day/Night

Auto (ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (digital)

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D

Privacy Masking

Up to 4 Areas

Lens

Focal Length

4mm 6mm, 8mm, 12mm, 16mm or 2.8-12mm optional

Max Aperture

F1.4

Focus Control

Manual

Angle of View

92°~ 27°

Lens Type

Manual Iris

Mount Type

Board-in Type

Video

Compression

H.264 / MJPEG

Resolution

1280x720 ; 640x320, 320x160, 160x112

Frame Rate

Preferred Stream

1280x720 (1~25/30fps)

Alternate Stream

640x320, 320x160, 160x112 (1~25/30fps)

Bit Rate

32KB ~16Mbps, support VBR, CBR

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,

ONVIF

ONVIF Ver. 2.0

Max. User Access

10 users

Smart Phone

iPhone, iPad, Android, Symbian

General

Power Supply

DC12V, POE (802.3af)

Power Consumption

≤6W

Working Environment

-20 ℃ ~ 60℃

Ingress Protection

IP66,

Dimensions

318mm ×110mm ×90mm

Weight

0.7KG

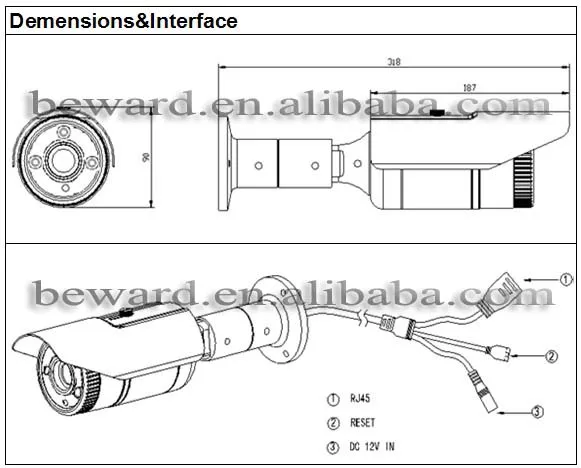

Demension and Interface:



Our Services



1. we can offer OEM&ODM

2. we can offer FREE software

3. long time warranty: 36months



FAQ



MOQ

1.Sample t order, have no limit for the quantity.
2.OEM MOQ is 50pcs/model

Payment Terms
T/T, Western Union, PayPal

Delivery Time:
1.Sample order about 2-7 working days.
2. General order about 15-30 working days.
3. Bulk order can about 25-50 working days.
Shipping

 FEDEX,DHL,TNT,UPS,EMS,Aramex,by air,by sea

OEM/ODM Service
OEM and ODM service are acceptable

Warranty Policy
We provide 3 years warranty after the shipment date.

Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us,thank you in advance.
