Industrial product P2P 2 Megapixel Ip Camera

FOB Reference Price:Get Latest Price
US $99-116 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
3000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Wellcam OEM/ODM
Model Number:
B2.920WF-C-POE
Type:
Digital Camera
Style:
Box Camera
Sensor:
CMOS
Technology:
NetWork
Special Features:
Waterproof / Weatherproof
chip:
HISILICON Hi3518
Image Sensor:
1/3" 1.3Megapixels Progressive Scan Exmor CMOS,IMX138
Day\night:
WDR,Day/Night(ICR),AWB,AGC,BLC
White Balace:
Auto
IR LEDs Length:
30-40m
Multiple network monitoring:
Web viewer,CMS,Smart phone
A/V:
support
Lens:
support
Water Proof standard:
IP66
Power Supply:
12V±10%
Packaging & Delivery
Packaging Details
OEM Package,Neutral Package,Standard carton Package
Delivery Time
About 3-7 working day after received your payment

Industrial product P2P 2 megapixel waterproof ir ip camera



Features

1. 1/3" 1.3Megapixels Progressive Scan Exmor CMOS

2. H.264 & MJPEG dual-stream encoding

3. Max 25/30fps@720P (1280x720)

4. WDR, Day/Night (ICR), AWB, AGC, BLC

5. Multiple network monitoring: Web viewer, CMS, Smart phone.

6. Fixed lens 2.8mm, 3.6mm are optional

7. Max. IR LEDs Length 10-15m

8. IP66, POE

9. Support defogging,







Specification:   1.3MP CMOS 720P Full HD Water-proof



Model

IR

IP66

POE

LENS (2.8mm, 3.6mm)

B2.920WF-C

Yes

Yes

No

Fixed Lens included, 2.8, 3.6mm optional

B2.920WF-C-POE

Yes

Yes

Yes

Fixed Lens included, 2.8, 3.6mm optional

Camera

Image Sensor

1/3” 1.3megapixels Progressive Exmor CMOS

Effective Pixels

1280x1024

Scanning System

Progressive

Electronics Shutter Speed

Auto (1/25,1/30 ~ 1/10000s)

Min. Illumination

0.1Lux/F1.2 (Color), 0.01Lux/F1.2(B/W); 0Lux/F1.2 (IR on)

S/N Ratio

>50dB

Camera Features

Max. IR LEDs Length

10-15M

Day/Night

Auto (ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (digital)

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D

Privacy Masking

Up to 4 Areas

Lens

Focal Length

2.8mm, 3.6mm optional

Max Aperture

F1.4

Focus Control

Manual

Angle of View

92°~ 27°

Lens Type

Fixed Iris

Mount Type

Board-in Type

Video

Compression

H.264 / MJPEG

Resolution

1280x720 ; 640x320, 320x160, 160x112

Frame Rate

Preferred Stream

1280x720(1~25/30fps)

Alternate Stream

640x320, 320x160, 160x112 (1~25/30fps)

Bit Rate

32KB ~16Mbps, support VBR, CBR

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,

ONVIF

ONVIF Ver. 2.0

Max. User Access

10 users

Smart Phone

iPhone, iPad, Android, Symbian

General

Power Supply

DC12V, POE (802.3af)

Power Consumption

5W

Working Environment

-20 °C ~ 60°C

Ingress Protection

IP66,

Dimensions

195.3mm ×82mm ×71.6mm

Weight

0.5KG

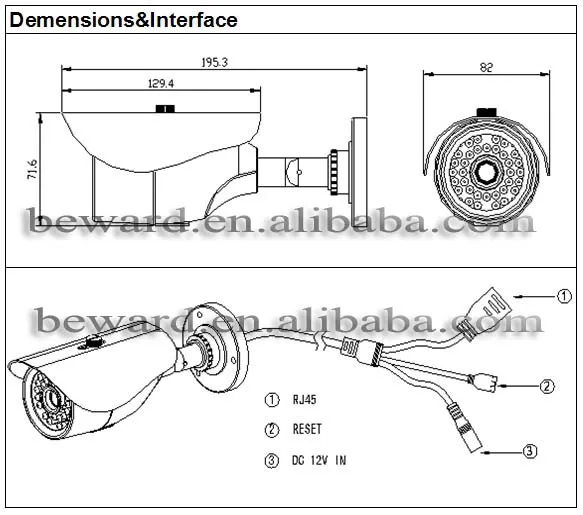

Demension and Interface





Our Services

Our advantage:

1. Strong and experienced R&D engineer team, we only concentratly worked with Hisilicon Chipset IP Products for 8 years.
    (http://www.hisilicon.com ),HI3518 & HI3520,HI3516 Chipset...and be top excellenet about Hardware in China also.

2. Be compatible with Onvif 2.2.0 support, can work with Mileston,Exacq,Axxonsoft...  (http://www.onvif.org/ )
     We're able to offer the Develop Kit,API Protocal and SDK for your side to develop and integrate your own IP products,
3. ODM/OEM accepted, to make your own software firmware and housing case for the IP camera.
4. Adopt using Sony Cmos Sensor IMX122,IMX138,IMX140.(excellent video performance better than Hikvision & Dahua )

Accept Warantee over 1 years
