H.264 HD outdoor IP IR-Bullet Network waterproof camera

FOB Reference Price:Get Latest Price
US $0-63 / Unit | 1 Piece/Pieces (Min. Order)
Supply Ability:
3000 Piece/Pieces per Week
Port:
SHENZHE/HONGKONG
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Wellcam
Model Number:
B2.920WF-C-POE
Type:
Digital Camera
Style:
Bullet Camera
Sensor:
CMOS
Technology:
NetWork
Special Features:
Waterproof / Weatherproof
chip:
HISILICON HI3518A
image sensor:
1/3" 1.3Megapixels Progressive Scan Exmor CMOS,IMX238
white balance:
AUTO
IR LEDs Length:
10-15M
Mutiple network monitoring:
Web viewer,CMS ,smart phone
day/night:
WDR,ICR,AGC,BLC
Lens:
fixed
Water Proof standard:
ip66
orther:
support defogging
Packaging & Delivery

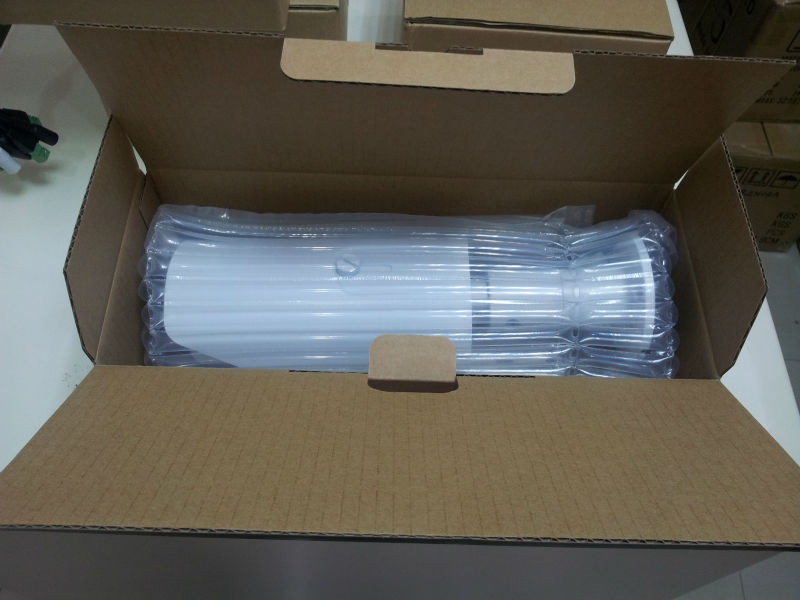

Packaging Details
OEM Package:10 pieces/box;Neutral Package:10 pieces/box
Delivery Time
3~5 working days after order comfirmed

waterproof camera

 model name : B920WF-C-POE





Product Description





~HISILICON HI3518A

~ 1/3" 1.3Megapixels Progressive Scan Exmor CMOS

~ H.264 & MJPEG dual-stream encoding

~ Max 25/30fps@720P (1280x720)

~ WDR, Day/Night (ICR), AWB, AGC, BLC

~ Multiple network monitoring: Web viewer, CMS, Smart phone.

~ Fixed lens 2.8mm, 3.6mm are optional

~ Max. IR LEDs Length 10-15m

~ IP66, POE

~ Support defogging,



Specification:

Model

IR

IP66

POE

LENS (2.8mm, 3.6mm)

B2.920WF-C

Yes

Yes

No

Fixed Lens included, 2.8, 3.6mm optional

B2.920WF-C-POE

Yes

Yes

Yes

Fixed Lens included, 2.8, 3.6mm optional

Camera

Image Sensor

1/3” 1.3megapixels Progressive Exmor CMOS

Effective Pixels

1280x1024

Scanning System

Progressive

Electronics Shutter Speed

Auto (1/25,1/30 ~ 1/10000s)

Min. Illumination

0.1Lux/F1.2 (Color), 0.01Lux/F1.2(B/W); 0Lux/F1.2 (IR on)

S/N Ratio

>50dB

Camera Features

Max. IR LEDs Length

10-15M

Day/Night

Auto (ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (digital)

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D

Privacy Masking

Up to 4 Areas

Lens

Focal Length

2.8mm, 3.6mm optional

Max Aperture

F1.4

Focus Control

Manual

Angle of View

92°~ 27°

Lens Type

Fixed Iris

Mount Type

Board-in Type

Video

Compression

H.264 / MJPEG

Resolution

1280x720 ; 640x320, 320x160, 160x112

Frame Rate

Preferred Stream

1280x720(1~25/30fps)

Alternate Stream

640x320, 320x160, 160x112 (1~25/30fps)

Bit Rate

32KB ~16Mbps, support VBR, CBR

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,

ONVIF

ONVIF Ver. 2.0

Max. User Access

10 users

Smart Phone

iPhone, iPad, Android, Symbian

General

Power Supply

DC12V, POE (802.3af)

Power Consumption

≤5W

Working Environment

-20 °C ~ 60°C

Ingress Protection

IP66,

Dimensions

195.3mm ×82mm ×71.6mm

Weight

0.5KG













Packaging & Shipping







Our Services



Wellcam CO.,LTD is experienced in working at R&D, customized IP Camera for many years since established. We sincere to serve our world-wide customers with satisfied products.



Our advantage:



1. Strong and experienced R&D engineer team, we only concentratly worked with Hisilicon Chipset IP Products for 8 years.     (http://www.hisilicon.com ),HI3518 & HI3520,HI3516 Chipset...and be top excellenet about Hardware in China also. 2. Be compatible with Onvif 2.2.0 support, can work with Mileston,Exacq,Axxonsoft...  (http://www.onvif.org/ )      We're able to offer the Develop Kit,API Protocal and SDK for your side to develop and integrate your own IP products,
3. ODM/OEM accepted, to make your own software firmware and housing case for the IP camera.
4. Adopt using Sony Cmos Sensor IMX122,IMX138,IMX140.(excellent video performance better than Hikvision & Dahua )



If you have any questions pls don't hesitate to contact me.I'm Glad to sit down to discuss the details you need at your convenient.





Your Security is our best Vision.







FAQ



-"What's your CMS?"



 Xcenter is designed to realize integrated surveillance,storage,management and control of all IP Cameras.The capacity of this management software can handle up to 1728 channels network camera,It can control local devices and remote devices to operate all settings.It supports 1/4/9/16/25/36 displays in one screen.It provides main functions like record,snapshot,playback,talk-back,full screen,camera set and so on.There are many hoht-keys for easy operation and nice interface.



 -" What's your Quality Control Management?  "



please see our attached company manufacturer quality control management.
