New launched IOS&Android supported,SIP wireless video door phone intercom system

FOB Reference Price:Get Latest Price
US $109-120 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Beward
Model Number:
DS06M(P)
Camera:
3.7mm
Power:
DC 12V
Sensor::
1/3 '' SONY 960H CCD, DSP Effio-E
Sensitivity::
0.1 lux (day) / 0.01 (Night)
Compression Format::
H.264 MP, Motion JPEG
Compression::
G.711 (u-law, a-law), G.726
IR Range::
10 meters
PoE::
PoE IEEE 802.3 AF
Operating temperature range::
- 40 To + 50℃
Dimensions (WxHxD)::
73*166*51 mm
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
neutral packing, standard packing and OEM
Port
Shenzhen
Lead Time :
About 3-7 working days after received your payment



Product Description

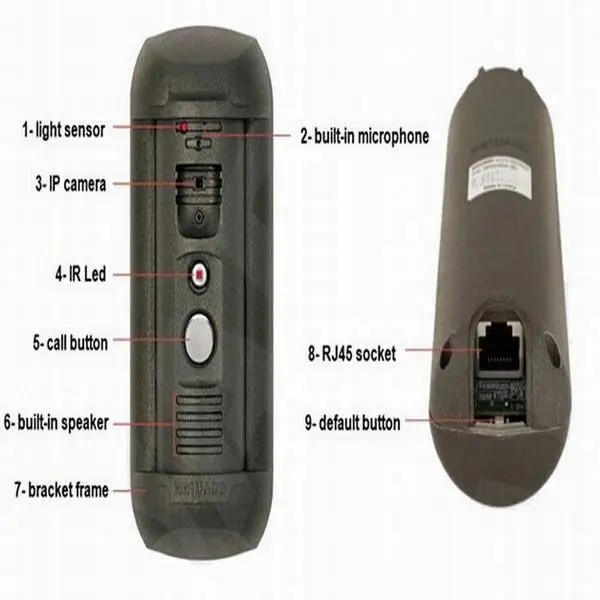

New launched IOS&Android supported, SIP wireless video door phone intercom system





1. Image sensor: SONY 960H CCD 1/3, DSP Effio-E Day/Night
2.Simultaneous encoding: H.264/H264, H.264/MJPEG, MJPEG /MJPEG
3.Frame rate: up to 25 fps for all resolutions
4.IR illumination distance: up to 10 m
5.Multi-streaming: up to 10 nonidentical streams (only one user can be in the two-way audio mode at one time)
6.Built-in web server for viewing and setting
7.A built-in player for watching records
8.Built-in microphone and speaker
9.Power: DC 12V, 0.6A / PoE 802.3af Class 0 (for DS03MP only)
10.Operating temperature: -40°C to +50°C
11.Protocols supported: TCP/IP, IPv4/IPv6, UDP, HTTP, NTP, RTP, RTSP, DHCP, DNS
12.ONVIF supported, IOS&Android Supported.

13. we can offer OEM&ODM, SDK&API for large project.




General characteristics
SensorColor, 1/3 ' SONY 960H CCD, DSP Effio-E, Day / Night
Sensitivity0.1 lux (day) / 0.01 (Night) 0 Lux (with incl. Backlight)
Resolution650 TV lines (horizontal), 976*582 (effective pixels)
 Black Light Compensation,3D noise reduction
DWDRDigital Wide Dynamic Range(DWDR)
Video
Compression FormatH.264 MP, Motion JPEG
Stream VideoDual encoding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
Resolution960x576, 720x576 (Full D1), 704x576 (D1), 704x288 (2CIF),
 352x288 (CIF), 176x144 (QCIF)
Frame rateUp to 25 / s for all resolutions (H.264)
Audio
CompressionG.711 (u-law, a-law), G.726
AdditionallyTwo-way audio channel
Network and interfaces
Network interface10Base-T / 100Base-TX Ethernet port
Network ProtocolsTCP, HTTP, FTP, SMTP, DNS, DHCP, PPPoE, POP3, RTP, RTSP, UDP, NTP, ARP
IR illumination
LEDsIR LED Lattice-type (1 pc.)
Illumination LevelAutomatically adjustable
Range10 meters
Operation
PoEPoE IEEE 802.3 AF
Operating temperature range- 40 To + 50°C
Ingress ProtectionIP65 , Metal coated with a corrosion-resistant polyester powder paint
Dimensions (WxHxD)73*166*51 mm
ManagementProfessional Software Intercom (included)
 Field of View Adjustment: rotatable body



General characteristics
SensorColor, 1/3 ' SONY 960H CCD, DSP Effio-E, Day / Night
Sensitivity0.1 lux (day) / 0.01 (Night) 0 Lux (with incl. Backlight)
Resolution650 TV lines (horizontal), 976*582 (effective pixels)
 Black Light Compensation,3D noise reduction
DWDRDigital Wide Dynamic Range(DWDR)



supported software list:

software

IOS&Android supported

Android apple_news

IP video intercom

instruction of IP Video Intercom



QQ20141128103541

Rotatable body



detail_ip_intercom_camera_7

Easy operating and access control

detail_ip_intercom_camera_2



Interface of free software, IP Intercom

Intercom













Company Information

Shenzhen wellcam Co.ltd being Beward Co.Ltd(www.beward.ru) supported company in China,was founded in 2004,"Wellcam" is our own logo brand.

We are professional in digital video solutions for IP surveillance applications,IP cameras and video server products,With an industry-leading experienced R&D team and manufacturing head offices in Hong Kong,we have achieved a good reputation as a reliable partner and supplier of CCTV systems from installation companies and bulk-suppliers



Our advantage:

1. Strong and experienced R&D engineer team, we only concentratly worked with Hisilicon Chipset IP Products for 8 years.
    (http://www.hisilicon.com ),HI3518 & HI3520,HI3516 Chipset...and be top excellenet about Hardware in China also.

2. Be compatible with Onvif 2.2.0 support, can work with Mileston,Exacq,Axxonsoft...  (http://www.onvif.org/ )
     We're able to offer the Develop Kit,API Protocal and SDK for your side to develop and integrate your own IP products,
3. ODM/OEM accepted, to make your own software firmware and housing case for the IP camera.
4. Adopt using Sony Cmos Sensor IMX122,IMX138,IMX140.(excellent video performance better than Hikvision & Dahua )

Accept Warantee over 1 years

All testing

Exhibition
detail_ip_intercom_camera_13
Factory and R&D team:
R&D3
 detail_ip_intercom_camera_11




FAQ



MOQ

1.Sample t order, have no limit for the quantity.
2.OEM MOQ is 50pcs/model

Payment Terms
T/T, Western Union, PayPal

Delivery Time:
1.Sample order about 2-7 working days.
2. General order about 15-30 working days.
3. Bulk order can about 25-50 working days.
Shipping

 FEDEX,DHL,TNT,UPS,EMS,Aramex,by air,by sea

OEM/ODM Service
OEM and ODM service are acceptable

Warranty Policy
We provide 3 years warranty after the shipment date.

Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email or chat with us by skype or whatsapp,thank you in advance.
