ONVIF video doorphone sip ip to analog converter

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    US $68.00
  • 50 - 99 Pieces
    US $64.50
  • >=100 Pieces
    US $61.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Beward
Model Number:
DK103
Camera:
NO Lens
Power:
DC12V 1A
Color:
White
Function:
Analog to IP
Resolution:
960H
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton box
Port
shenzhen
Lead Time :
Shipped in 7 days after payment

         sip  ip to analog converter

  • Connecting analog CCTV-camcorder
  • Monitoring and configuration via a standard web browser
  • Simultaneous encoding of the two streams in the formats H.264 and MJPEG
  • Motion Detection, Event Recording
  • Connecting external alarm sensors, actuators and rotary devices
  • Supports two-way voice communication in real time (duplex)
  • MicroSDHC slot for memory cards
  • Compact size and light weight
  • Features: built-in Wi-Fi, 4G module connection
Compression FormatH.264 MP, Motion JPEG
Dual video stream encodingDual encoding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
Resolutionmain stream:960x576 (960H), 720 x 576 (D1), 704 x 576 (4CIF)
Alternative flow:704 x 576 (4CIF), 704 x 288 (2CIF),
352 x 288 (CIF) 176 x 144 (QCIF)
Frame rateup to 25 fps for all permissions
Baud ratefrom 32 kbit/s to 16 Mbit/s
Image parametersbrightness, contrast, saturation, hue
Titledate/time, stream size, frame rate
Audio
CompressionG.711 (u-law, a-law), G.726
OptionalDuplex

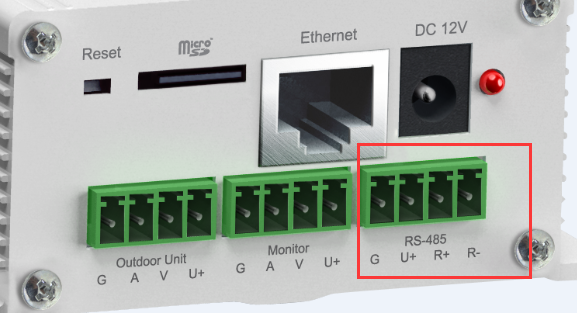

Network and interfaces
Network interface10Base-T / 100Base-TX Ethernet port
Network ProtocolsTCP/IP, IPv4/v6 SIP v.2.0, VPN, STUN, HTTP,
HTTPS, FTP, SMTP, DNS, DDNS,
DHCP, PPPoE, RTP, RTSP, UDP, NTP, ONVIF v. 2.41
ConnectionDHCP, static IP address
SecurityMulti-level, access with password protection
Usersup to 3 accounts
Connectingvideo cameras, audio, video, food, 12 v (DC)
the monitor audio, video, food, 12 v (DC)
4 g USB 2.0 module
Data portRS-485
Advancedsupport for microSDHC cards (up to 32 GB)

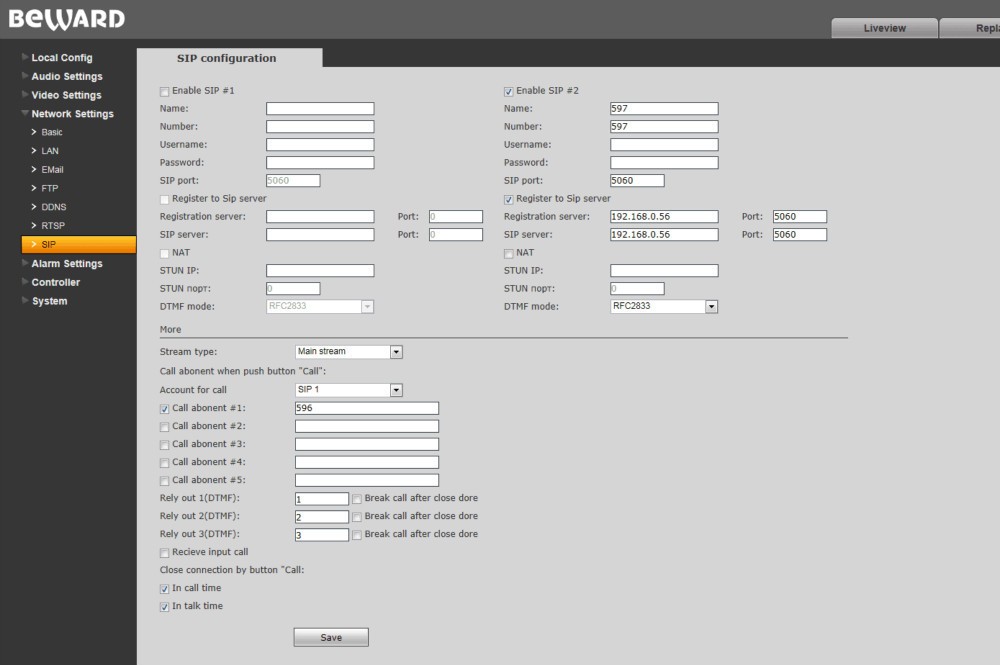

SIP
The number of SIP-accounts2
Subscribers to call SIPup to 5
Modes of DTMFinband and RFC2833, SIP INFO, in-band
Record and events
EventMotion detection, network error
Motion detectionBuilt-in detector, to 4 detection zones (sensitivity adjustment)
Send by mailShots
Write to FTP, memory cardVideo Footage
Operation
PoweredDC12V  1A
Power consumptionup to 12 Watts
Operating temperaturerange From 0 to +50° c
Housing materialaluminum  alloy
Dimensions (WxHxD)88 X 118 X 40 mm
Weight280 g (net)
System requirementsMicrosoft Internet Explorer 9.0 or higher in Wednesday 8/Windows 7/Vista
Complete set
Delivery KitIP Portal
mounting kit
terminal block (3 PCs.)
CD-ROM (with documentation and software)
Packing containers







ip conveter.jpg

 photobank(3)T4WUO$_{BM83KW$002_LS_R

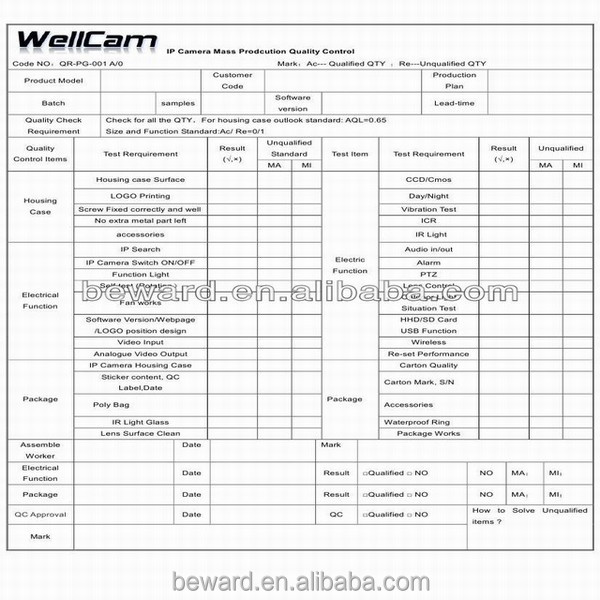

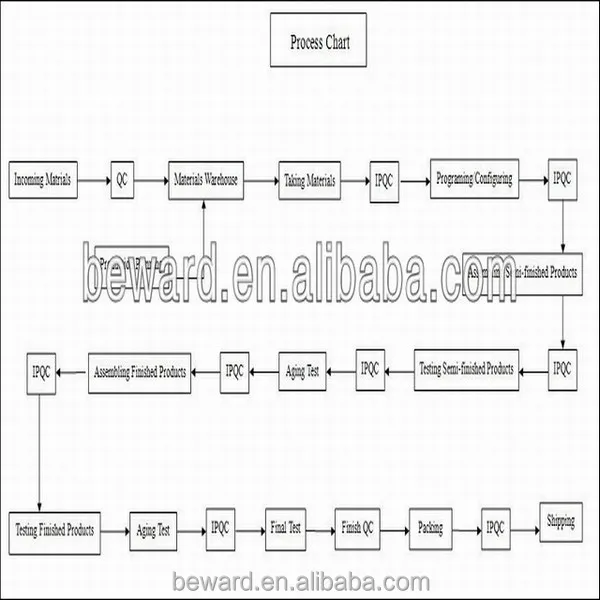

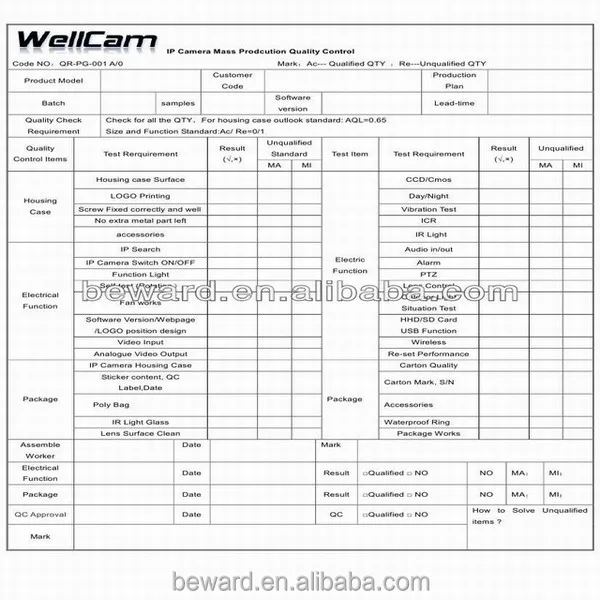

Production Control:
