H.265 WDR Motorized varifocal 2.8-8mm lens IP security cctv camera

FOB Reference Price:Get Latest Price
US $65-72 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Wellcam
Model Number:
B2.920WF-C-POE
Type:
Digital Camera
Style:
Bullet Camera
Sensor:
CMOS
Technology:
NetWork
Special Features:
Vandal-proof&Water-proof
chip:
HISILICON Hi3516
Image Sensor:
1/2.8" 2.1Megapixels Progressive Scan Exmor CMOS,IMX122
Day\night:
WDR,Day/Night(ICR),AWB,AGC,BLC
White Balace:
Auto
IR LEDs Length:
20m
Multiple network monitoring:
Web viewer,CMS,Smart phone
A/V:
support
Lens:
support
Water Proof standard:
IP66
Rotation:
3Rotation
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
OEM Package:10 pieces/box
Neutral Package:10 pieces/box
Port
Shenzhen
Lead Time :
3-7 working days

H.265 WDR Motorized varifocal 2.8-8mm lens IP security cctv camera



Product Description

 1





Day & Night Vision:








Featured:

. 1/2.8" 2.1Megapixels Progressive Scan Exmor CMOS

. H.264 & MJPEG dual-stream encoding

. Max 25/30fps@1080P (1920x1080)

. WDR, Day/Night (ICR), AWB, AGC, BLC

. Multiple network monitoring: Web viewer, CMS, Smart phone.

. Motorized varifocal lens:2.8-8mm

. Max. IR Distance: 10-20M

. IP66, POE



Specification:

Camera

Image Sensor

1/2.8” 2.1megapixels Progressive Exmor CMOS

Effective Pixels

1920x1080

Scanning System

Progressive

Electronics Shutter Speed

Auto (1/25,1/30 ~ 1/10000s)

Min. Illumination

0.5Lux/F1.2 (Color), 0.05Lux/F1.2(B/W); 0Lux/F1.2 (IR on)

S/N Ratio

>50dB

Camera Features

Max. IR LEDs Length

10-20M

Day/Night

Auto (ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (digital)

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D

Privacy Masking

Up to 4 Areas

Lens

Motorized varifocal lens

2.8-8mm

Max Aperture

F1.4

Angle of View

92°~ 27°

Lens Type

Varifocal

Mount Type

Board-in Type

Video

Compression

H.264 / MJPEG

Resolution

1920x1080, 1280x720 ; 640x320, 320x160, 160x112

Frame Rate

Preferred Stream

1920x1080, 1280x720 (1~25/30fps)



Alternate Stream

640x320, 320x160, 160x112 (1~25/30fps)

Bit Rate

32KB ~16Mbps, support VBR, CBR

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,

ONVIF

ONVIF Ver. 2.0

Max. User Access

10 users

Smart Phone

iPhone, iPad, Android, Symbian

General

Power Supply

DC12V, POE (802.3af)

Power Consumption

≤5.5W

Working Environment

-20 ℃ ~ 60℃

Ingress Protection

IP66,

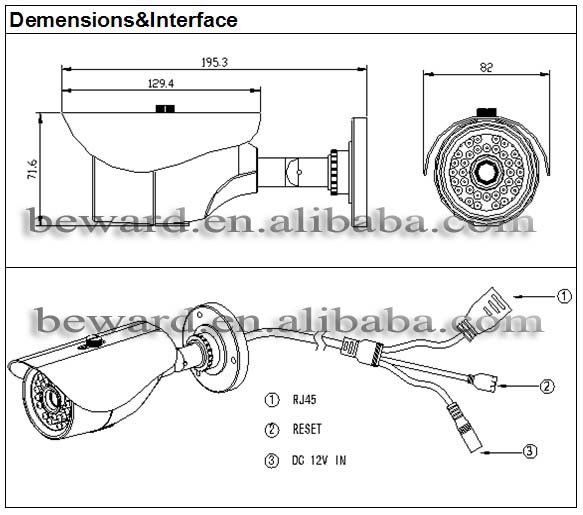

Dimensions

195.3mm ×82mm ×71.6mm

Weight

0.5KG



 B2.920WF-Ca

Company Information

 R&D3

 QQ20160905105021

 Surveillance Camera

 IP Surveillance Camera

Products PCB Produce Process

process chart 05











Packaging & Shipping

 20120928_171920



FAQ



MOQ

1.Sample t order, have no limit for the quantity.
2.OEM MOQ is 50pcs/model

Payment Terms
T/T, Western Union, PayPal

Delivery Time:
1.Sample order about 3-7 working days.
2. General order about 5 - 10 working days.
3. Bulk order can about 15-25 working days.
Shipping

 FEDEX,DHL,TNT,UPS,EMS,Aramex,by air,by sea

OEM/ODM Service
OEM and ODM service are acceptable

Warranty Policy
We provide 3 years warranty for CCTV Cameras after the shipment date.

Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us,thank you in advance.
