4MP IR Waterproof low illumination ONVIF H.265 IP camera support Micro SD card slot

FOB Reference Price:Get Latest Price
US $69-72 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Wellcam
Model Number:
B2.940H-WF-E-LX
Type:
IP Camera
Style:
Bullet Camera
Sensor:
CMOS
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Image Sensor:
1/3" CMOS sensor
High resolution:
2048x1520
Scanning System:
Progressive
Min. Illumination:
0.05Lux/F1.2 (Color), 0.005Lux/F1.2(B/W);
S/N Ratio:
>50dB
IR distance:
20-30M
Lens:
4/6/8mm(Optional)
WDR:
Support
Smart Phone:
iPhone, iPad, Android, Symbian
weight:
0.7KG
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
neutral packing, standard packing and OEM
Port
Shenzhen
Lead Time :
About 3-7 working days after received payment

4MP IR Waterproof low illumination ONVIF H.265 IP camera support Micro SD card slot



Product Description

with back boxIR Outdoor 2MP 8IR Outdoor 2MP 7IR Outdoor 2MP 6



Features:

1) 1/3" 4Megapixels Progressive Scan Sony CMOS

2) H.265/ H.264 & MJPEG three codec

3) Max 25/30fps@4MP (2592x1520)

4) True WDR (100db), 2D, 3D noise reduction, AWB, AGC, BLC

5) Multiple network monitoring: Web viewer, CMS, Smart phone

6) Switch Day/Night by video detection, IR detection and Time

7) Micro SD Card Slot (max 64GB)

8) Three big LED lights, IR distance about 20 meters

9) IP66

10) POE optional

11) ONVIF2.4.1

Technical Specifications:

Image Sensor

1/34megapixels Progressive CMOS

CPU

Hi3516D

Effective Pixels

2592x1520

Scanning System

Progressive

Electronics Shutter Speed

Auto (1/25,1/30 ~ 1/10000s)

Min. Illumination

0.05Lux/F1.2 (Color), 0.005Lux/F1.2(B/W);

0Lux/F1.2 (IR on)

S/N Ratio

>50dB

Camera Features

Max. IR LEDs Length

15-20 m

Day/Night Switch

Auto Color to B/W

Backlight Compensation

BLC / HLC / WDR (digital)

White Balance

Auto

Gain Control

Auto

Noise Reduction

2D, 3D

Privacy Masking

Up to 4 Areas

Lens

Focal Length

4mm, 6mm, 8mm, 12mm or 2.8-12mm optional

Max Aperture

F1.4

Focus Control

Manual

Angle of View

92°~ 20°

Lens Type

Manual Iris

Mount Type

Board-in Type

Video

Compression

H.265MP, H.264 HP/MP/BP & MJPEG

Resolution

2592x1520,2048x1520,1920x1080; 640x480, 320x240

Frame Rate

Preferred Stream

2592x1520,2048x1520,1920x1080 (1~25fps)



Alternate Stream

640x480,320x240 (1~25/30fps)

Bit Rate

32KB ~16Mbps, support VBR, CBR

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,

ONVIF

ONVIF Ver. 2.42

Max. User Access

10 users

Smart Phone

iPhone, iPad, Android, Symbian

General

Power Supply

DC12V, POE (802.3af)

Power Consumption

≤6W

Working Environment

-20 °C ~ 60°C

Ingress Protection

IP66,

Dimensions

318mm ×110mm ×90mm

Weight

0.7KG



Company Information

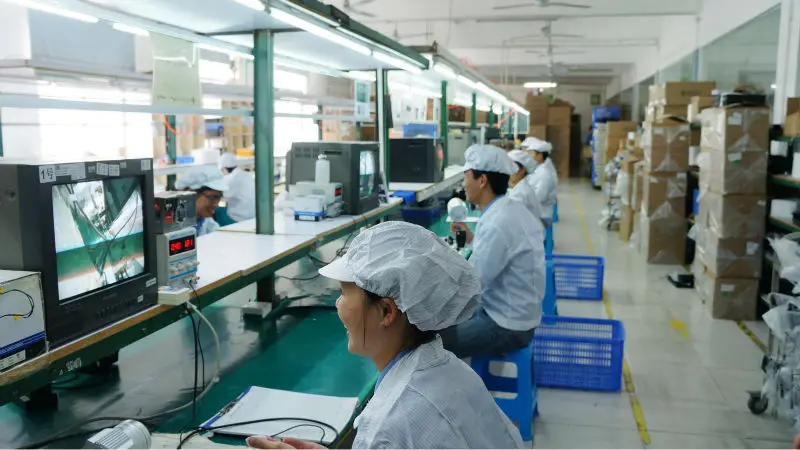

1.Strong and experienced R&D engineer team

R&D3



2.Exhibition

IP Surveillance CameraIMG_8133CIMG6405QC-4process chart 05



Our Services



1. we can offer OEM&ODM

2. we can offer FREE software

3. long time warranty: 18months



Packaging & Shipping

1. Shipping methods: DHL, TNT, FedEx, UPS and EMS, as per to your requirement.

2. Delivery time: within 3-7 working days after received payment.
