TCP/IP/SIP/Onvif MULTI apartment video door phone intercom opening systems with keypad

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    US $380.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Beward
Model Number:
DKS15120
Product Name:
apartment video door phone systems
Viewing Angle:
137 ° (horizontal), 103 ° (vertical)
RFID Type:
125 kHz and 13.56 MHz
Compression format:
H.264 BP / MP, Motion JPEG
Audio Compression:
G.711 (a-law, u-law), G.726
Network Protocols:
TCP / IP, SIP v.2.0, ONVIF v.2.41, Modbus TCP
Members List:
Up to 3 accounts
Number of doors:
2 pcs.
Users:
Support for 9999 subscribers
RFID:
8 RFID keys per user
Power:
DC12V&POE optional
Camera:
1.3 megapixel, color, 1/3 " Exmor, Day / Night
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Neutral package for apartment video door intercom systems
Port
Shenzhen/Hongkong
Lead Time :
No Stock Now
Video Description
SIP Video Intercom

Vandal-proof SIP IP Intercom Systems

Types of item
Key Features
url

1-Button IP/SIP Video Intercom
(for SOS, HELP Point, Villa)
1, DC12V&POE power supply
2, 3 channel alarm out, up to control 3 doors.
3, Free professional VMS, Record software
4, Onvif, SIP, Modbus, RTSP, HTTP Event......protocol support.

Apartment IP/SIP video Intercom
(for apartment, with keypad)
1, Up to 9999 room support
2, 8 RFID keys per room
3, Two way video talk via sip
4, Anti-Thief, user data backup


check

Old video door phone to IP/SIP
(analog door phone converter)
1, Exchange analog door phone to be IP&SIP
2, Control & Monitor via app, pc software.
3, Onvif, SIP, Modbus, RTSP, HTTP Event......protocol support.
Product Overview
Resolution
1.3MP,  1/3'' Exmor sensor
Encoding
H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
Lens
2 mm, F2.0
Viewing Angle
137 ° (horizontal), 103 ° (vertical)
Protocol
TCP / IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP, DDNS, DHCP, PPPoE, Onvif 2.4.2....
RFID
8500 RFID keys, 8keys per one user
Room Support
Up to 9999 users
Calls
8 direction of calls forwarding

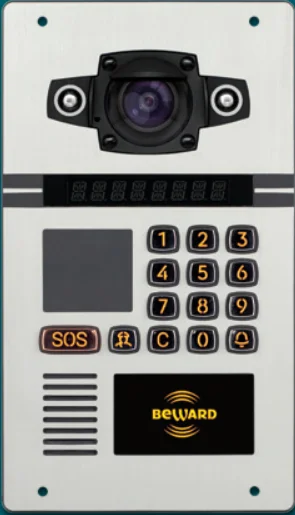

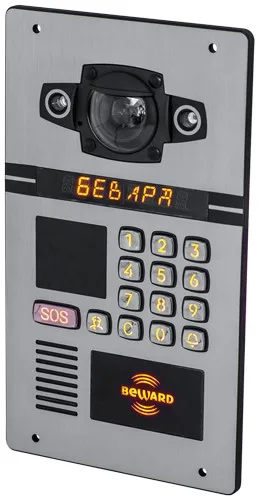

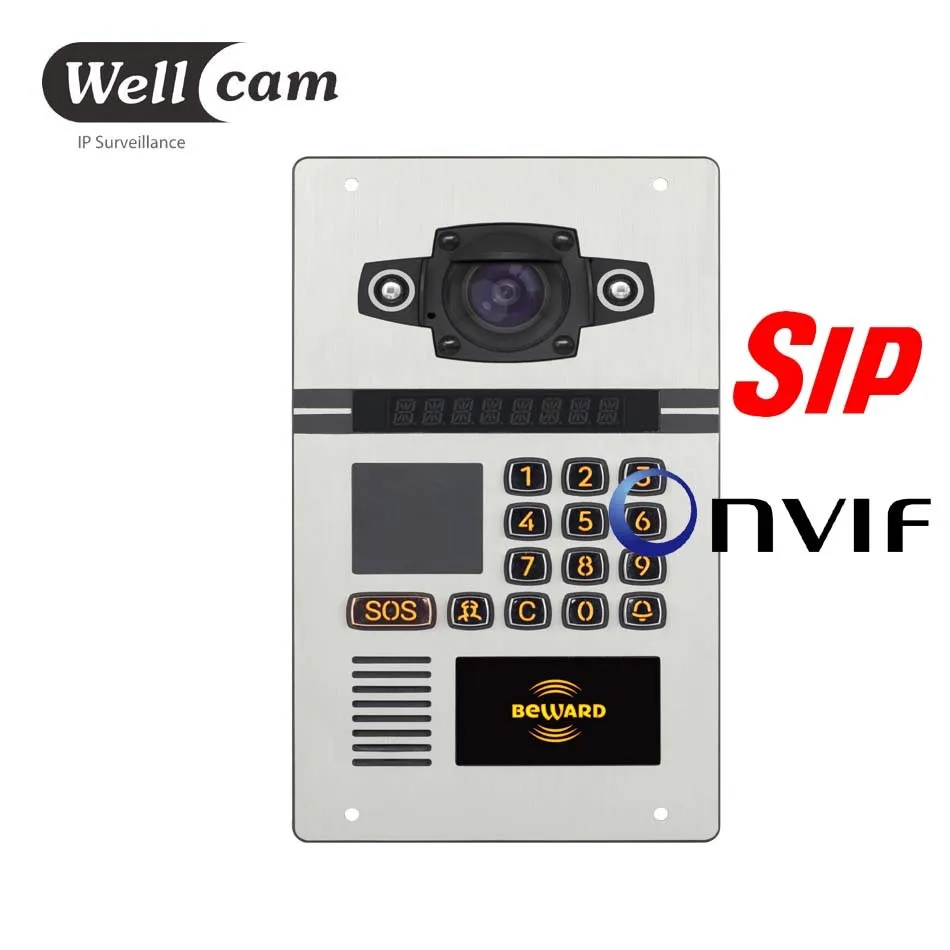

The multi-user IP intercom Beward DKS15120 is designed to control access to the entrance of the apartment building. To transfer high-quality video to an IP intercom, a 1.3 megapixel camera is used. Audio in duplex format and video is transmitted using the SIP protocol. The presence of an RFID reader at 125 kHz and 13.56 MHz makes it possible to arrange a passage to the entrance via wireless tags. For the transfer of video in full darkness there is built-in IR-illumination with a range of illumination up to 10 m. The metal vandal-proof housing of the intercom does not allow attackers to disable it. Due to the temperature range from -50 to + 60 ° C, the doorphone can be operated at any time of the year. Support for a four-digit subscriber number, up to 9999, allows the use of an IP doorphone Beward DKS15120in hotels or in buildings with a high floor.

ONVIF 2.4.2

With ONVIF 2.4.2 supported, your analog door phone systems can easily to integrated to existing surveillance system. such as NVR......

SIP2.0

VOIP phone is very POP now, the DK103 IP Portal can easily connect doorphone to IP phone. No need install extra components...

SDK&API available

We are always glad to provide sdk&api for smart home integration, system integratiom, you are welcomed to ask more details.
