Face Recognition Terminal For Turnstile Access Control Systems

  • 1 - 49 Units
    $240.00
  • 50 - 99 Units
    $220.00
  • >=100 Units
    $210.00
Type:
Turnstile Flap Barrier Face Recognition Systems
Shipping:
Support Express · Sea freight
Lead Time:
Quantity(Units) 1 - 1 2 - 10 >10
Est. Time(days) 3 5 Negotiable
Customization:
Customized logo (Min. Order: 100 Units)
ui (Min. Order: 1 Units)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
B2002FR-8I-CM
CPU:
HI3516D
Function:
Face Recognition To Release Turnstile
Match SEVER:
Embedded
Algorithm:
Embedded
Connection:
WIFI or RJ45
Interface:
Wiegand/RS232/RS485
Dimension:
260*136*26mm
Supply Ability
Supply Ability:
50 Unit/Units per Day
Packaging & Delivery
Packaging Details
Neutral Package
Port
shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 2 - 10 >10
Est. Time(days) 3 5 To be negotiated
Video Description

Standalone 8 Inch face recognition terminal unit with SDK&API for integration

Main Features
* Support Real Time Human Body Detection


* Unique live face recognition algorithm to accurately recognize faces, face recognition time is less than 0.8s


* Mean time between failures MTBF>50000H


* Support for human face tracking exposure in strong backlighting

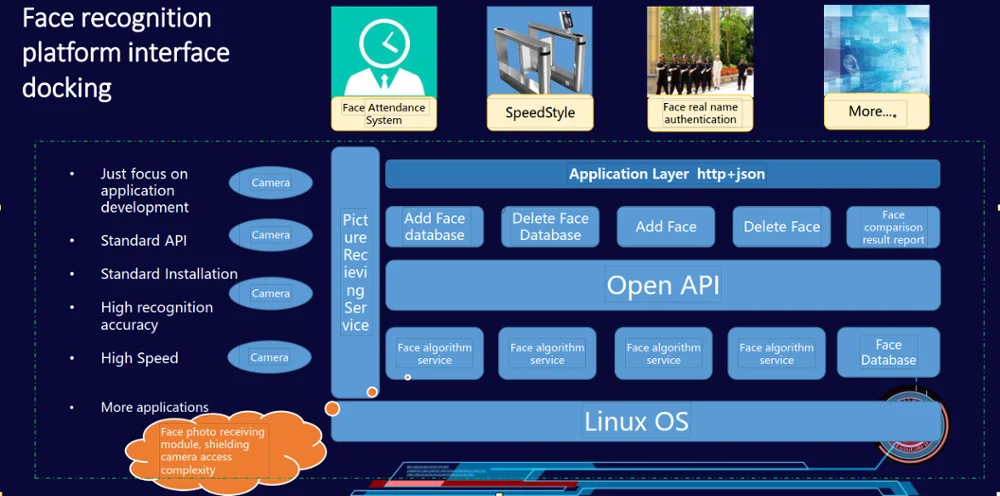

* Rich interface protocol, support SDK and HTTP protocol under various platforms such as Linux/Windows


* Using Linux operating system, better system stability.


* Support 24000+ face matching library and 160,000+ face recognition records.


* Support TF card storage, pictures are stored continuously for 1 year or longer (depends on TF card capacity)


* Operating temperature: -30 ° C - +60 ° C


* Outdoor IP66 waterproof and dustproof


* The device supports local login to manage, query, and configure


* 8-inch IPS full-view HD display, no streaking and delay


* The device supports connect to an external access control host or Wiegand reader through the international standard Wiegand protocol (WG26/WG34)

Product Description
Model
B2002FR-8I-WM
Hardware
Hi3516D CPU+1G memory+16G flash
Processor
Dual Core Processor(Hi3516D V300)+ 1G memory + 16G flash
Operating system
Linux Operating system
Storage
Support TF card storage
Viewing angle
Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor
1/2.8" Progressive Scan CMOS (IMX307)
Lens
6mm
4G module
Optional customization functions (not by default )
Wifi module
802.11 b/g/n (not by default )
Bluetooth module
BLE5.0 Optional customization functions (not by default )
Speaker
voice playback content can be customized
Performance
Recognition height
1.2~2.2 meters, angle adjustable
Recognition distance
0.5~1.5 meters, depends on lens
Recognition time
Less than 0.8 second
Storage capacity
160,000+ capture records
Face capacity
24000pcs
Screen brightness
≥400 cd/m2
Switching output
1 way switch output, other GPIO port can be customized
Network interface
1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Audio and video interface
speaker output
Wiegand interface
1ch Wiegand interface input/output
RS485
There is an RS485 interface on the PCB board, but no lead
USB interface
1ch USB interface
Camera
2MP CMOS CAMERA
Camera
Two cameras
Effective pixels
2MP,1920*1080
Min Illumination
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR
≥50db(AGC OFF)
WDR
100db, ISP algorithm face partial exposure
Function
Web side configuration
support
remote upgrade
support
Regular
Operating temperature
-30℃ - +60℃
Working humidity
0~90%relative humidity, no condensation
Salt spray
level Rp6 or above
Antistatic
contact ±4KV, air ±8KV
Power
DC12V/3A
Waterproof
IP65
Power
20W(MAX)
Equipment size
260 (length) * 136 (width) * 26 (thickness) mm
Screen size
8 inch IPS HD screen
Weight
1.7 kg

Standalone face recognition machine

The standalone face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings and so on.

Image enhancement processing engine

Local wide dynamic technique based on image enhancement • Dark spot enhancement + strong light suppression + multiple noise reduction • Exposure time first, single exposure • Face (analysis object) takes precedence, ensuring the optimal quality of face image in real time, regardless of background image quality Local wide dynamic technique based on image enhancement • Dark spot enhancement + strong light suppression + multiple noise reduction • Exposure time first, single exposure • Face (analysis object) takes precedence, ensuring the optimal quality of face image in real time, regardless of background image quality
Innovative 3D reconstruction technology
Based on ordinary monocular images (no need for dual cameras), the same person can restore the positive face image by using more than 2 different angle face photos • Image 3D fusion technology, non-based 3D model image fitting • No specific angle relationship requirements, easy to deploy

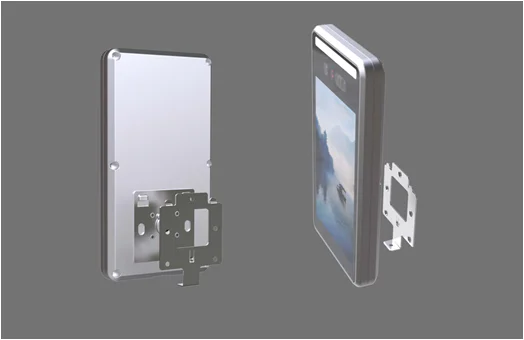

Wall Mount

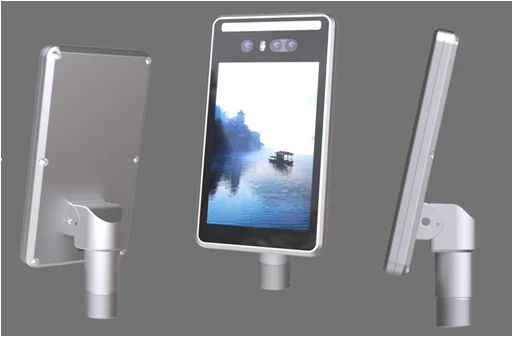

Turnstile Type
